R&D Museum

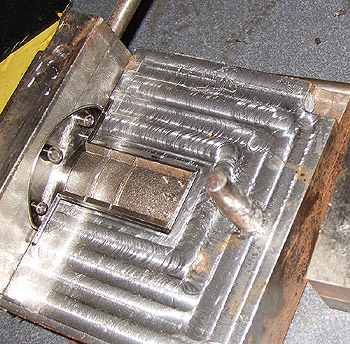

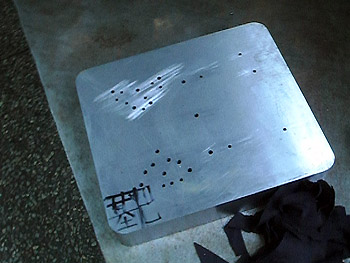

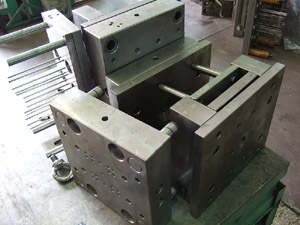

One block of steel to rule them all

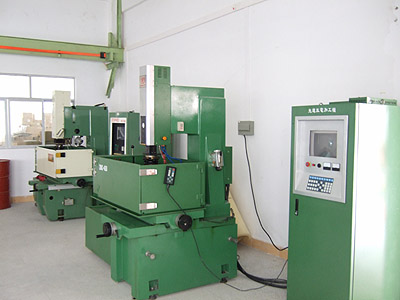

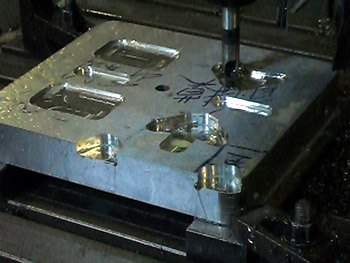

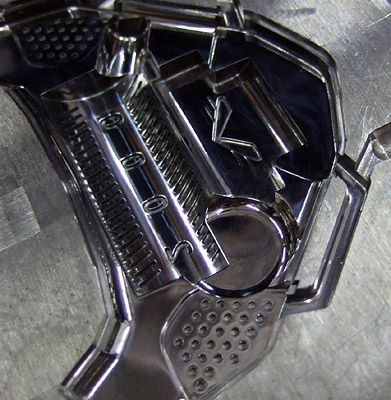

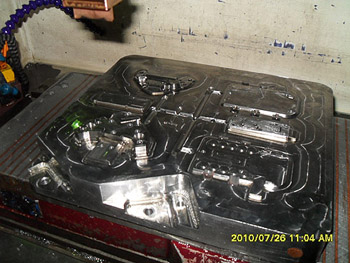

EDM (Electrical Discharge Machining) - this machine uses machined electrodes and electrical sparks to create all the fine details in the mold

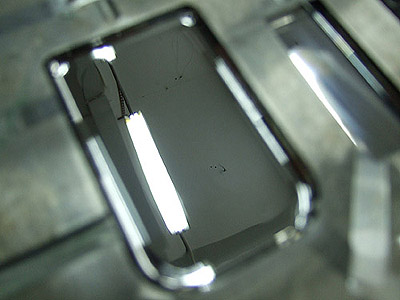

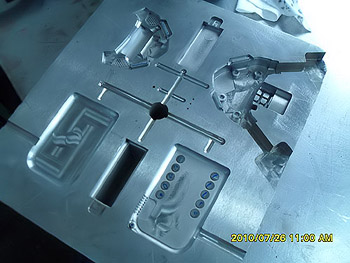

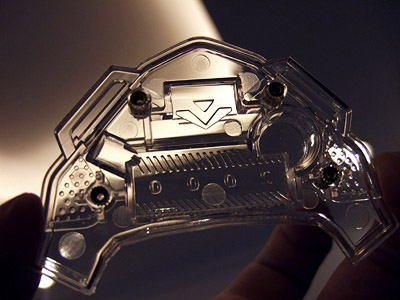

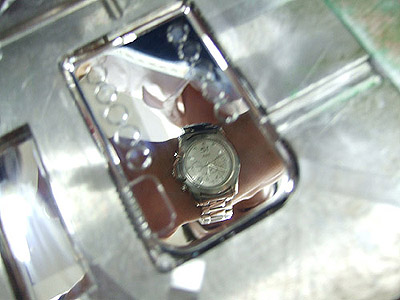

The molds were polished with crushed industrial diamonds a few microns in diameter to achieve the glass-like surface finish of our enclosures

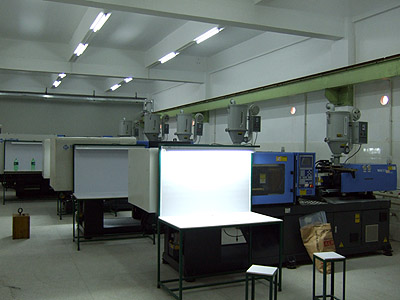

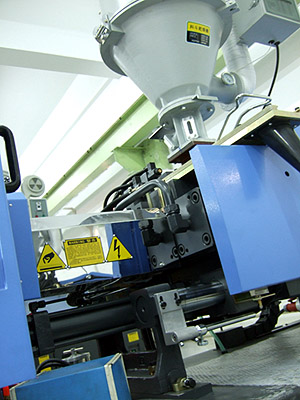

Brand new just purchased injection molding machines

The results:

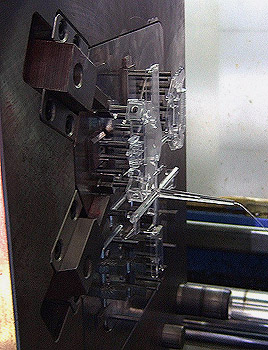

The first DL2000 enclosure being ejected from the mold

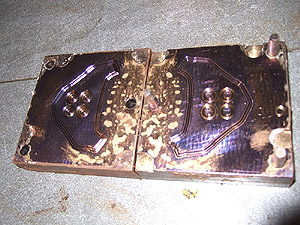

Misc DL2000 rubber molds

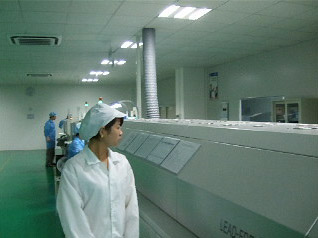

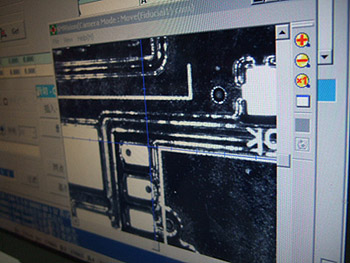

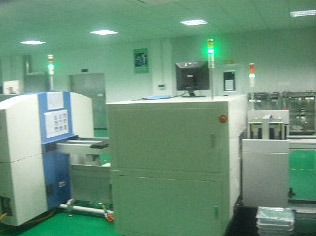

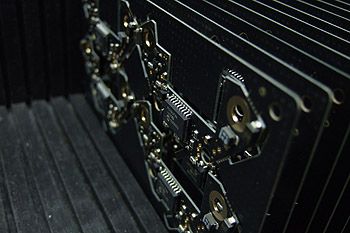

PCB assembly machinery.

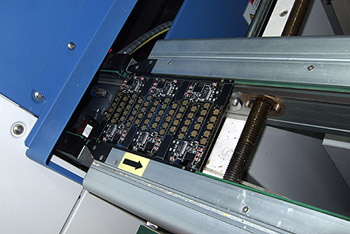

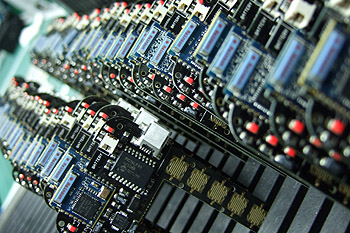

Our first DL2000 units coming out of the pick and place machines

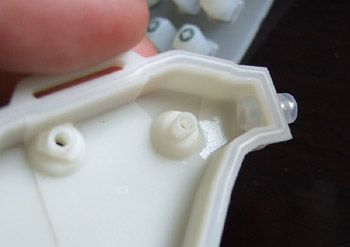

Many failures... many different grommets... many rubber molds... different shore hardnesses... still leaking...

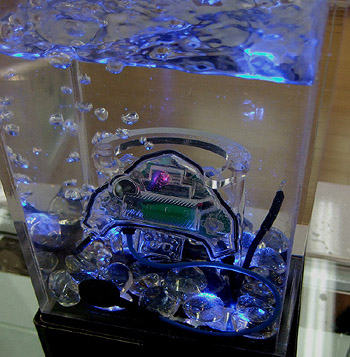

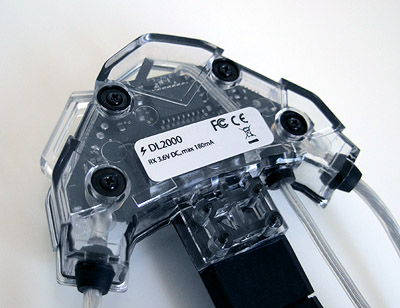

Then success! IP68, >1 meter depth, washing machine proof (don't try it at home though). No animals were harmed, only slightly over-fed.

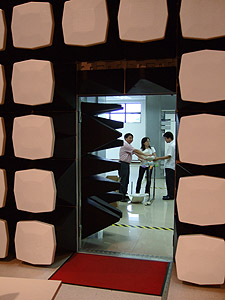

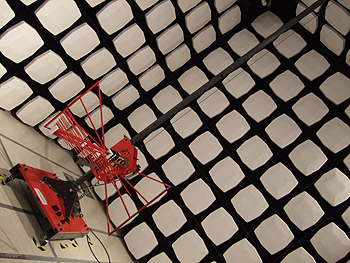

We show up at a huge testing lab, go into the anechoic chamber and put the DreamLover 2000 through 2 days of tests for FCC and CE mark compliance. The engineers wanted to know what the device was, so we told them, but they didn't believe us.

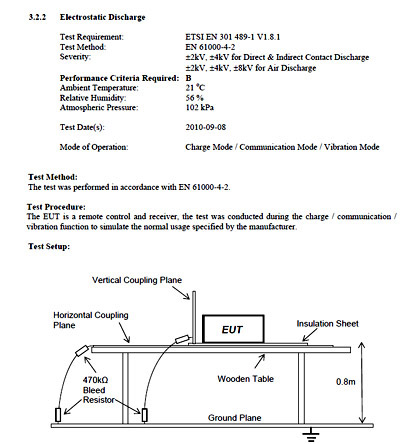

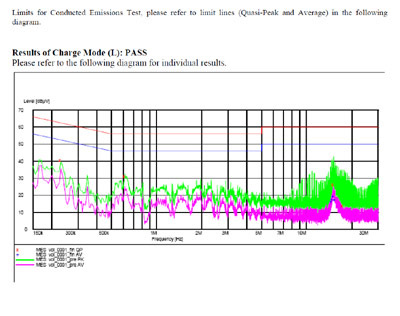

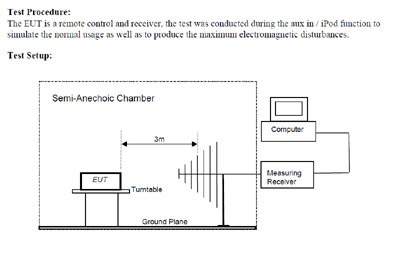

Here are the very expensive test reports

The DreamLover 2000 is the result of nearly 3 years of passionate R&D and progressive improvement.

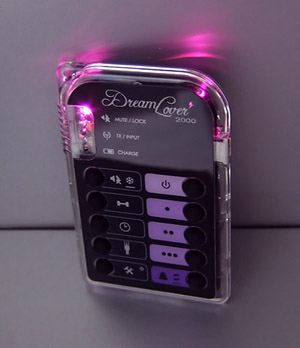

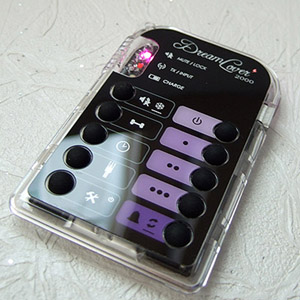

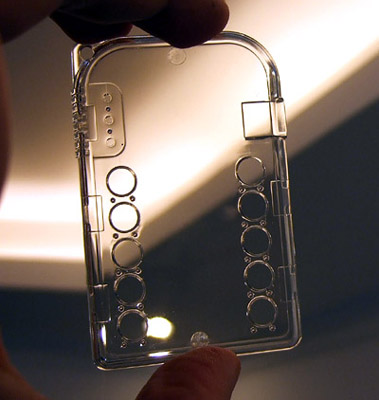

Remote control evolution

Hey, let's make a Boyfriend Training device.

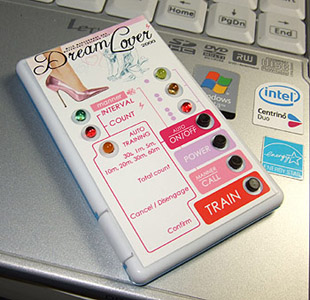

Inkjet looks nicer

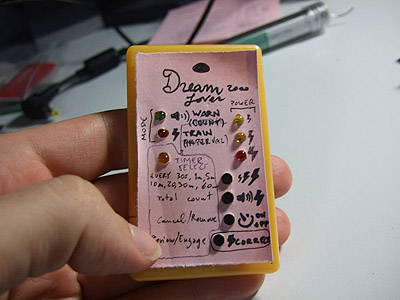

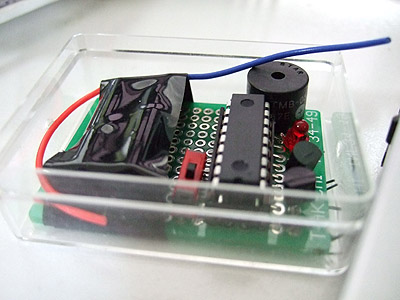

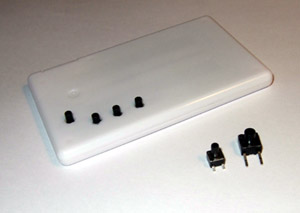

Found a nice mint box, but the buttons won't fit

What the heck, let's just move to China and make diamond polished steel molds!

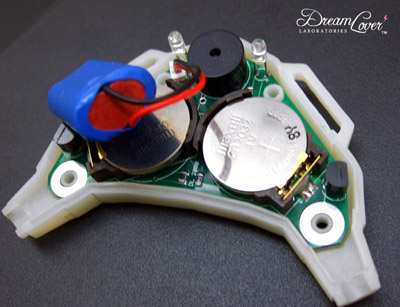

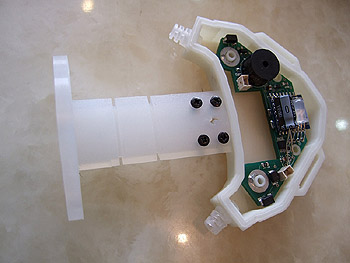

Receiver evolution

Should have been a PhD thesis!

Let's find a smaller box...

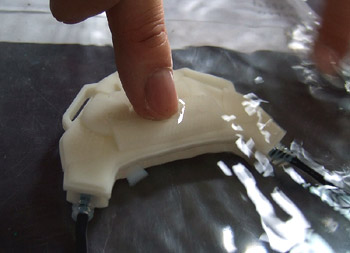

Let's make a custom prototype...

But since we're there, let's get rid of the 24V pack, use a charge pump, add ESD components, an accelerometer, and add some rubber and water-proofing

Would you like an Arousal Inducer to go with that?

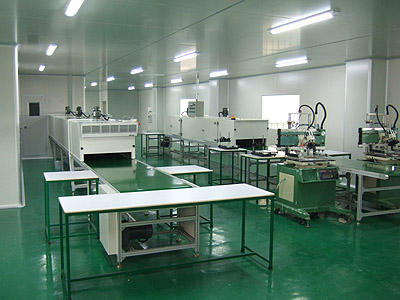

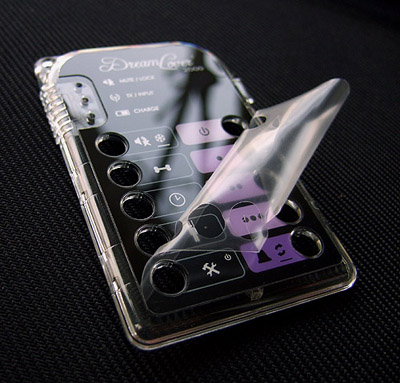

Screen printing room and results.
